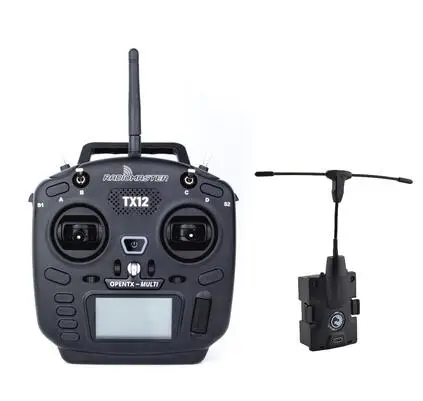

TX12 16CH OpenTX Multi-Module Compatible Digital Radio Transmitter With TBS CROSSFIRE MICRO TX V2

Radiomaster TX12 16CH OpenTX Multi-Module Compatible Digital Radio Transmitter With TBS CROSSFIRE MICRO TX V2

Features:

1. Ergonomic design. Comfortable size and ergonomics，suitable for “thumbers"and “pinchers”.

2. Folding handle saves space, easy to store and more portable.

3. Precise control. The remote control has a more sense of operation, with dual adaptation of push and pinch.

Description:

TX12 remote control is suitable for all types of fixed-wing, glider, helicopter and multi-rotor aircraft. The model type can be selected according to the aircraft used, and various hybrid functions can be used.

Specifications:

Brand Name: RadioMaster

Item Name:TX12 Transmitter

Size:170*159*108mm

Weight: 363g

Frequency: 2.400GHZ-2.480GHZ

RF Chip: Single-chip Multi-protocol（CC2500）

Supported Protocols: Corona, Hitec, Futaba S-FHSS,Frsky D16/D8, RadioLink, Graupner HoTT

Transmitting Power: 20dbm

Antenna Gain: 2db

Working Current: [email protected]

Voltage Range:6.6-8.4v DC

Range: > 2km @ 20dbm (depending on receiver)

Radio Firmware: OpenTX（Transmitter）/  Multi-Module（RF module)

Channels: Up to 16 (depending on receiver)

Display:128*64 Monochrome LCD display

Gimbal: High precision potentiometer gimbals

Package Included:

Remote control * 1

TBS CROSSFIRE MICRO TX V2 * 1
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object
