RadioLink AT9S PRO 2.4G 12CH DSSS FHSS Mode2 Transmitter w/R9DS Receiver for RC Model Airplane Drones

RadioLink AT9S PRO 2.4G 12CH DSSS FHSS Mode2 Transmitter w/R9DS Receiver for RC Model Airplane Drones

Name: RadioLink AT9S PRO 2.4G 12CH DSSS FHSS Mode2 Transmitter w/R9DS Receiver for RC Model Airplane Drones
Brand: KIDGIFTMALLPLT
SKU: KIDGIFTMALLPLT_1631489587_1005003332330852_2638
Price: 190.01 USD
Availability: InStock
Rating: 4.4 (416 reviews)

$190.01 - $201.61

Category: Remote Control Toys

Description
Customer Reviews

Mode 2 version as default, if you need mode 1 , pelase message in your order, we will change for you

SPECIFICATIONS:
Brand Name: Radiolink
Item Name: AT9S Pro Transmitter
Package Weight: 1200g
Mode: Mode2
Color: Gold, Gray Â ï¼ˆas your chioceï¼‰

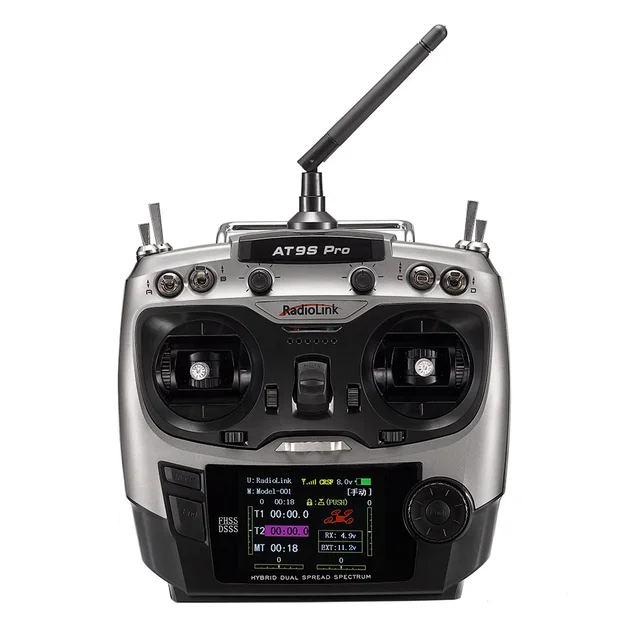

	AT9S Pro Transmitter
Weight:	880g
Size:	183100193 mm
Frequencies Band:	2.4Ghz ISM band (2400MHz-2483.5MHz)
Bandwidth:	5.0MHz
ACPR:	>38dbm
Modulation Mode:	QPSK
Spread Spectrum Mode:	DSSS&FHSS/CRSF
Transmission Power:	DSSS&FHSS<100mW (20dbm) CRSFÂ 10mW/25mW/100mW/500mW/1W/2W (Optional)
Operating Voltage:	7.4~18.0V
Operating Current:	DSSS&FHSS<90mA@12V CRSFÂ Depends on the transmission power selected
Channel Qty:	10/12 (CH5 through CH10/12CH can be programmed)
Control range:	DSSS&FHSS-4KM in the air (Maximum range is tested in an unobstructed area free of interference) CRSF-Depends on the RX and TX from BLACKSHEEP
Signal Output:	PWM/SBUS/PPM/CRSF
Compatible receivers:	12CH-R12DSM, R12DS 10CH-R9DS (Std), R6DS, R6DSM CRSF: RX from BLACKSHEEP
Simulator Mode:	the transmitters RF circuit turns off to save battery power
Display:	2.8-inch 16-bit true color screen, resolution 240 * 320 pixels
Adaptable Models:	Rotary Wing, Fixed wing, Multicopter, Car, Boat, Robot

AT9S PRO Features:

-Radiolink 2019 AT9S Pro Version TX 10/12CH RC Radio Controller Support T8S Crossfire CRSF Protocols with R12DSM Mini Receiver RX 2.4G for Racing Drone Quadcopter Mode 1/2.

-Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for10 channels response.

-CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS, CRSF protocol from BLACKSHEEP is added. Compatible with TBS Crossfire TX.

-Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS, PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol, TBS Crossfire TX is needed to bind to BLACKSHEEP receiver.

-Real-time Information: When with flight module PRM-03,model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, Pitch and distance are displayed. on the LCD screen display.

-Adapts to All Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types,Â Rotary Wing, Fixed Wing, Multicopter, Car, Boat, Robot. Transmitter automatically switches layout depending on selected mode.

-USB Based Upgrades: Transmitter is easily updated with the latest firmware by USB cable to connect PC.

-Voltage Protection System: RadioLink's voltage protection software ensures vital components are protected from a reverse polarity connection.

-Simple Setting Humanized: Menu is designed applicable to both beginners and skilled person, only need takes 1 second to bind.

-Support for Universal Battery: JST connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery. (Not included batteries) A 3s 1800mAh liPo battery can work more than 12 hours.

Description:
Brand Name:RadioLink
Item NO.: R9DS
Frequency: 2.4GHz
Channel: 9CH
Color: Black
Usage: Used for RadioLink AT9 AT10 remote controller

Features:
–Upgraded version, antenna is improved, signal will be more stable
– Dual-way communication function
– Could send back flight data
– High sensitivity, distance up to 1.1km
– DSSS technology, reliable
– Supported S-BUS and high-voltage steering engine

Package list:

1 x AT9S pro

1 x R9DS receiver w/parts Â (as your choice)
