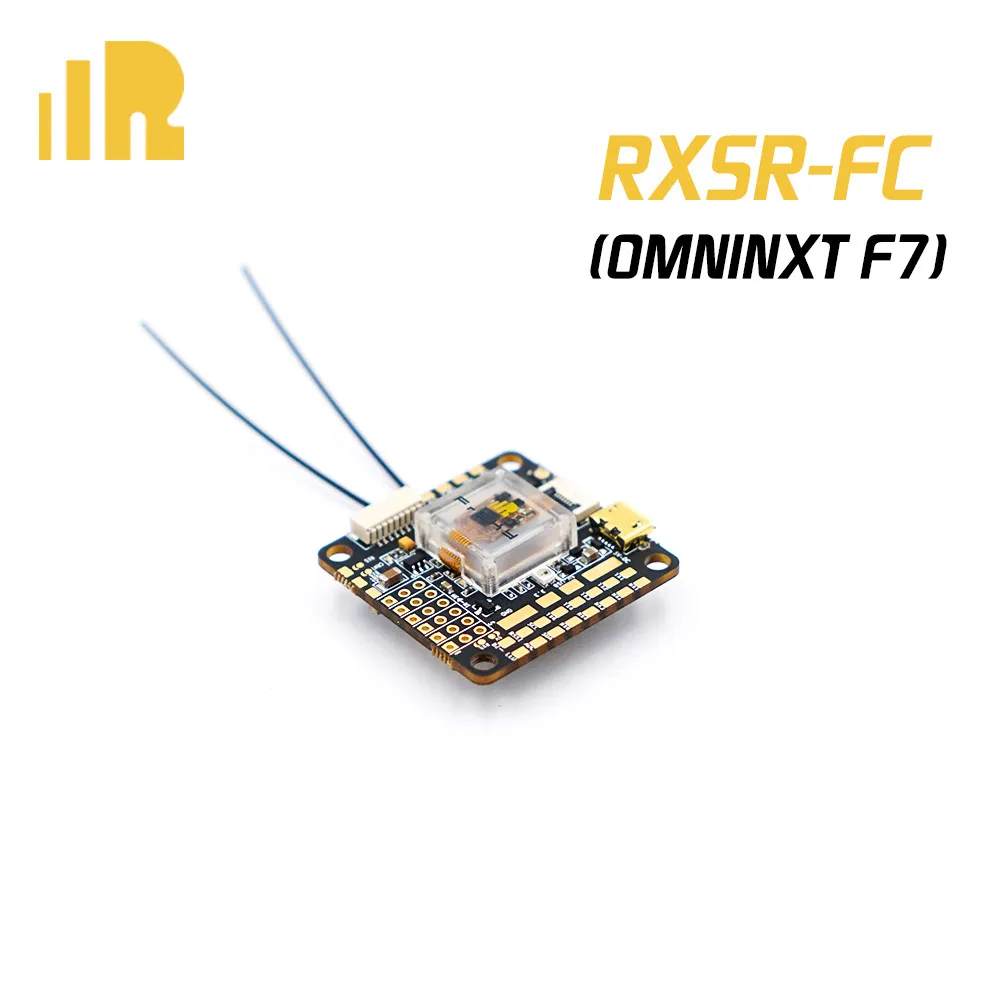

FrSky RXSR-FC OMNINXT F7 FPV Drone FC Flight Controller with R-XSR/R9MM Receiver MPU6000 ICM20608 OSD for RC Drone

The RXSR-FC (OMNINXT F7) supports 3-6s Lipo direct input, built-in BEC for camera / VTX and Power Filter. This FC is designed to be able to pair with 4in1 ESCs to form a powerful combo, and also has pins for individual ESCs.

Features

• RXSR Receiver
• STM32 F7 MCU Processor
• Gyro #1: MPU6000 8kHz
• Gyro #2: ICM20608 32kHz
• Integrated PDB & OSD (SPI/DMA)
• 6 UART Ports
• Direct plug-in 3-6S Lipo
• 5V 1000mA BEC
• 8V 1000mA BEC with LC filter
• 3.3V max. 200mA

Specifications

• F7 MCU processors
• FrSky RXSR receiver in protection box
• Two gyros onboard: MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
• 30.5×30.5mm Mounting holes
• Supports 3-6S Lipo
• More caps to reduce power noise
• Built-in sensor damper
• Built-in 5V 1A BEC output (Buck)
• Built-in 8V 1A BEC with LC filter output for the camera and VTX (Buck)
• STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
• Port for easy connection to 4-in-1 esc (SH1.0 8P)
• Solder pads added for VTX and Camera Control (next to Video pads)
